Bioline Lamella Wall Terrace Pergola – Measurement and Technical Data

Measuring the Bioline Lamella Pergola

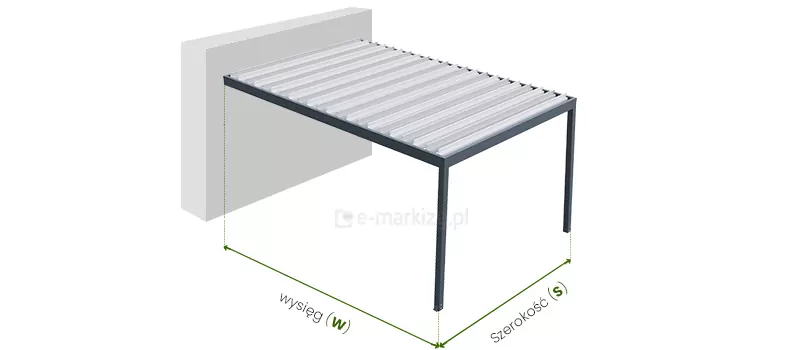

Bioline longitudinal wall pergola, dimensions, measurement of terrace pergola

Terrace Pergola – Longitudinal Slats

S=Pergola width
W = Pergola overhang

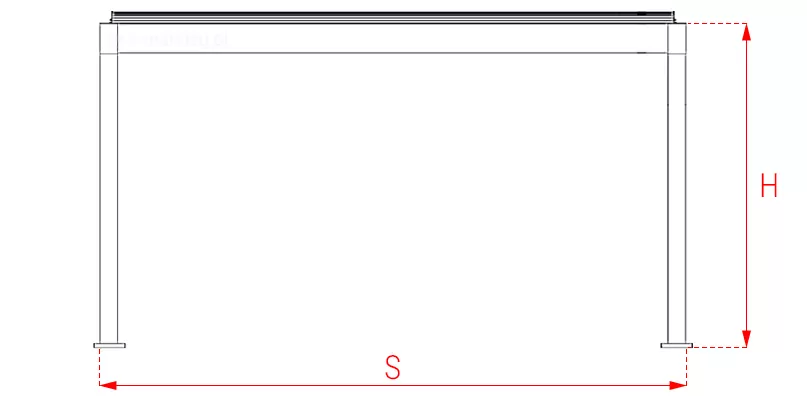

Measuring the width of a free-standing bioline pergola, measuring the width of a free-standing pergola

View from the front of the pergola – Longitudinal slats

S=Pergola width
H=Height of the support profile (standard 260cm)

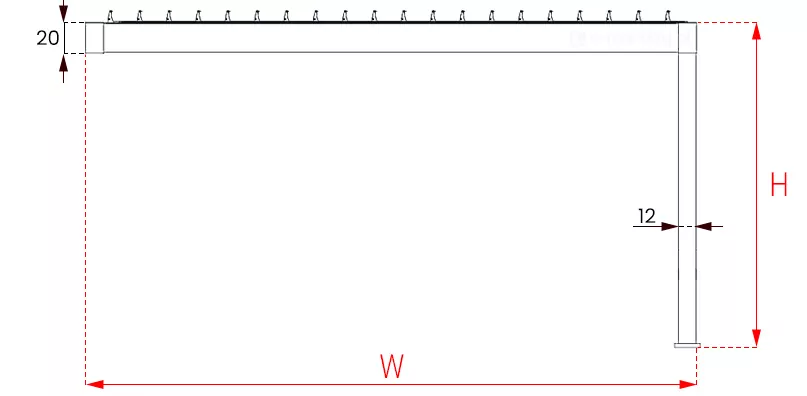

Measuring the projection of a wall-mounted bioline pergola, dimensioning the projection of a longitudinal pergola

Side view of the pergola – Longitudinal slats

W = Pergola overhang
H=Height of the support profile (standard 260cm)

Terrace Pergola – Transverse Slats

S=Pergola width
W = Pergola overhang

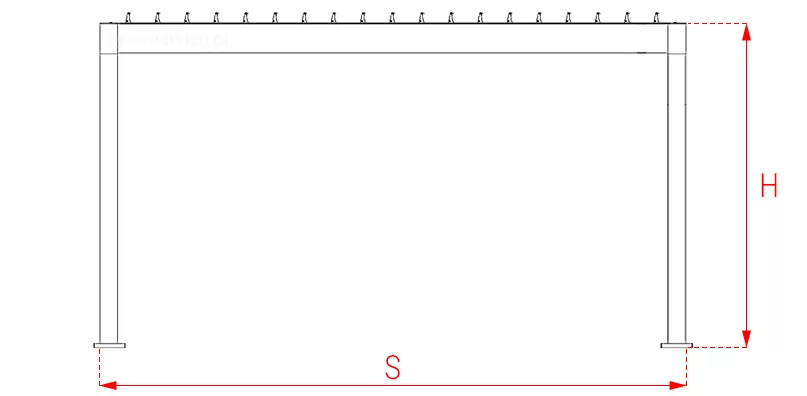

Measuring the width of a wall-mounted bioline pergola, measuring the width of a transverse pergola

View from the front of the pergola – Transverse Slats

S=Pergola width
H=Height of the support profile (standard 260cm)

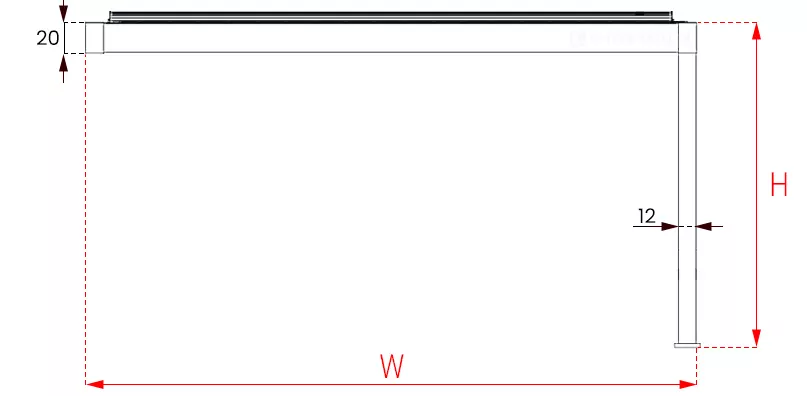

Measuring the projection of a wall-mounted bioline pergola, dimensioning the projection of a transverse pergola

Side view of the pergola – Transverse Slats

W = Pergola overhang
H=Height of the support profile (standard 260cm)

Bioline Lamella Wall Pergola – Technical Data

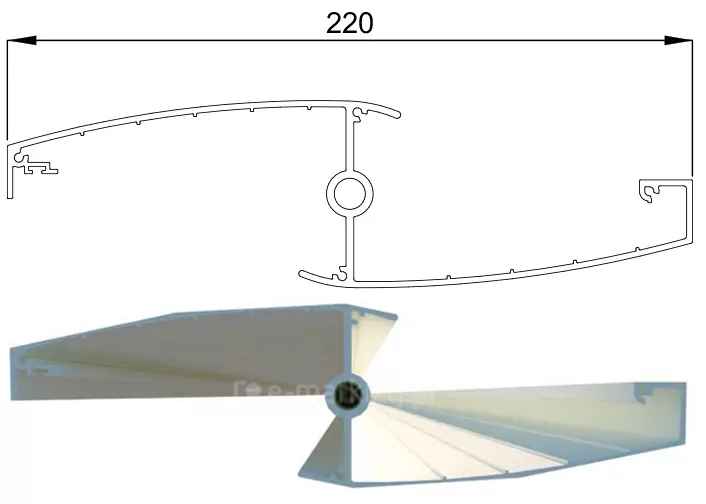

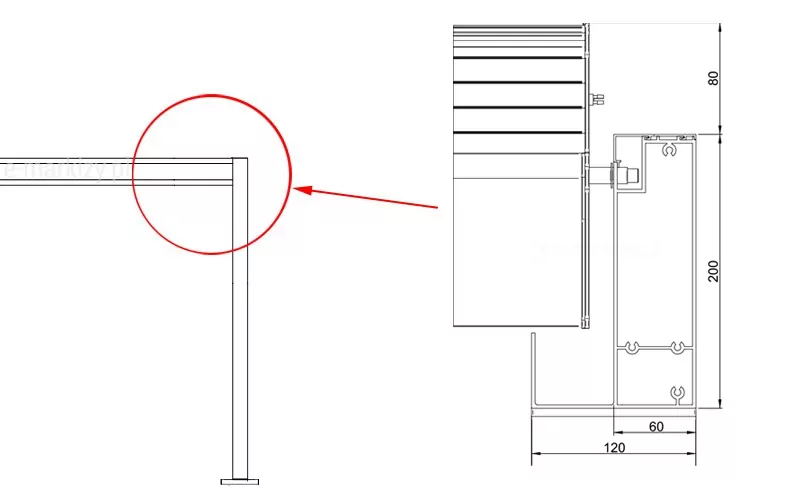

Cross-section of a bioline pergola, bioline pergola, cross-section

Pergola – Cross-section of the slats

Bioline pergola, slats, cross-section, slats of the bioline climatic pergola

Pergola slats – dimensions

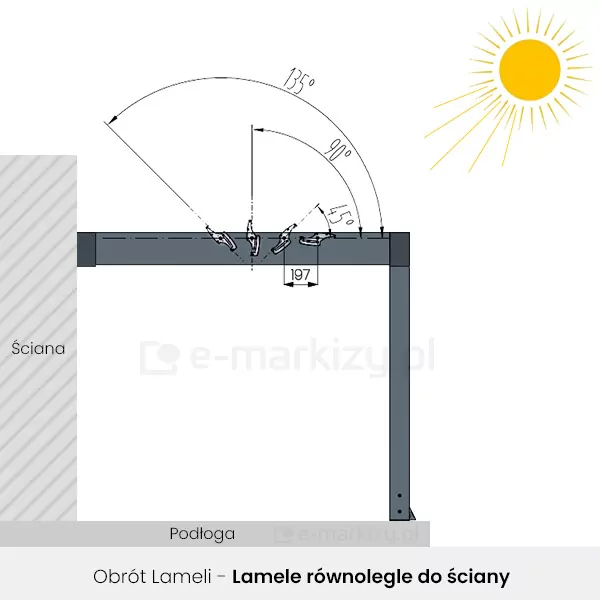

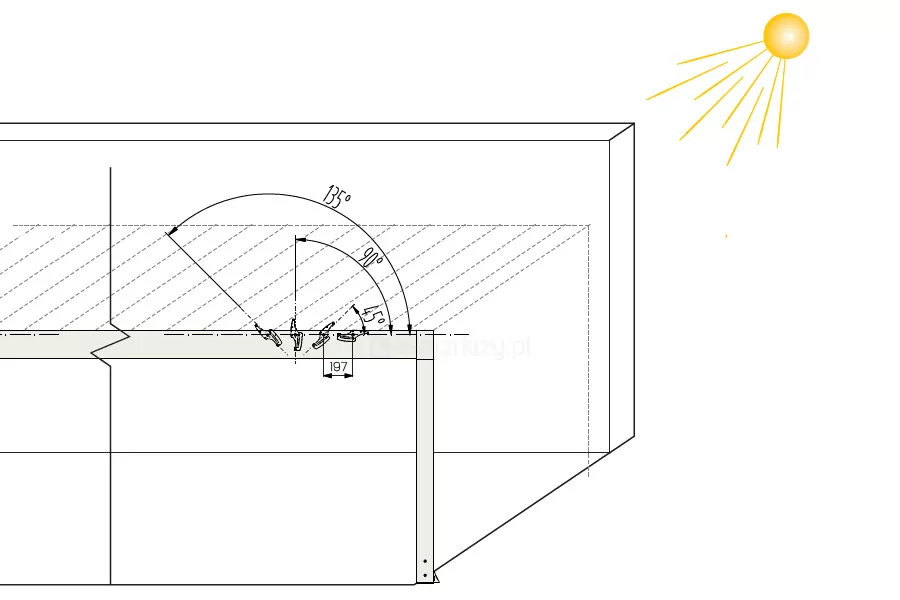

Pergola against the wall, longitudinal bioline slats, arrangement of parallel pergola slats

Longitudinal Pergola – Slat Rotation (0° – 135°)

Pergola, transverse, bioline slats, arrangement of pergola pergola slats

Transverse Pergola – Slat Rotation (0° – 135°)

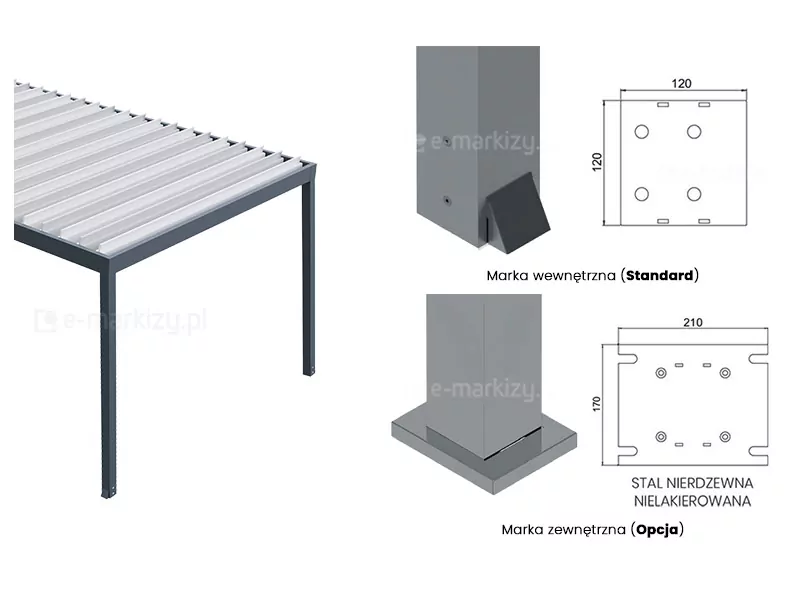

Pergola assembly brands

– internal brand (standard)
– external brand (option)

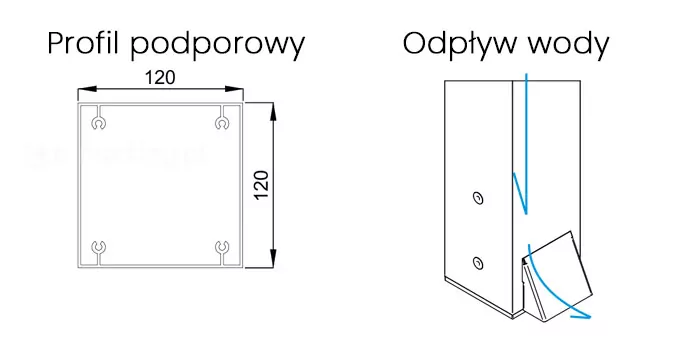

Pergola support profile and water drainage from the pergola support

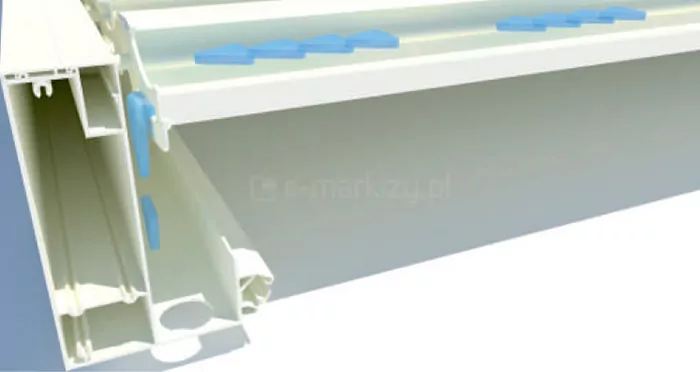

Bioline pergola, water drainage method, pergola gutter

Draining water from the pergola roof to the support

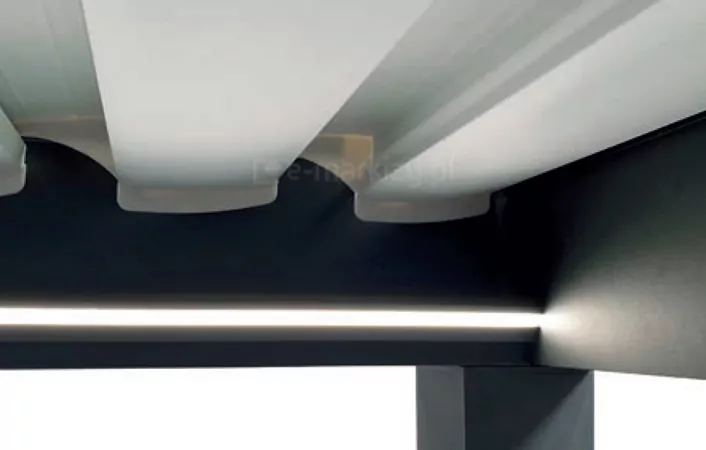

Bioline pergola hidden LED, LED lighting hidden in the gutters of the structure

LED strip placed in the structure

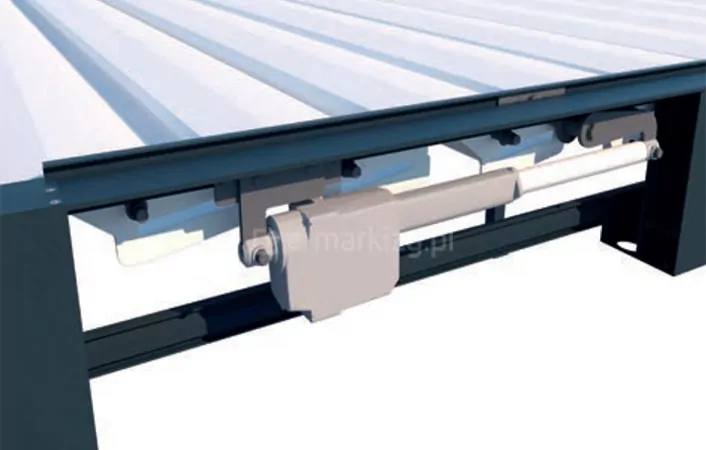

Pergola bioline ukryty motor, silnik pergoli ukryty w konstrukcji

The pergola motor is hidden in the structure
